Venue: Skylight Modern
Interactivity: slow and smooth color chase when no one is around; white meteor trail moving on top of default color chase when people approach to the staircase
Color scheme:
Mounting: LED tapes will be mounted inside the handrail slots on both sides of the wall
The entire handrails and walls around them will be lit.
According to calculations on the section view: there will be long pixel tapes of 30’ - 11 7/8’’ long on each side of the wall.
Section view

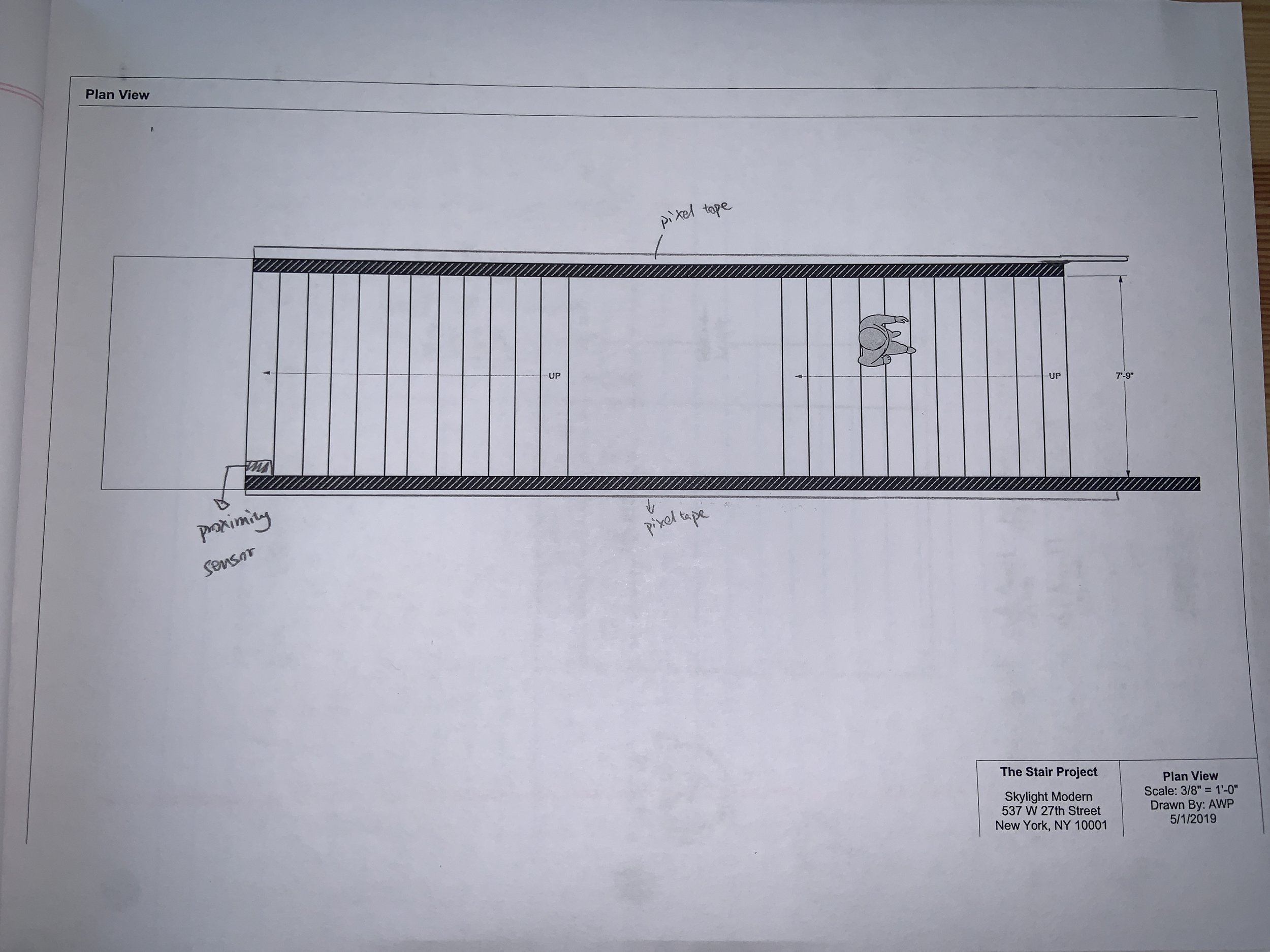

Plan view
Riser diagram
Bill of materials:
4x RGBW 5V(90w) 5m/16.4ft Pixel Tape @$35.99 each
2x AC to DC5V40A (200W) power supply @$26.80 each
2x 16awg power cord @$6.71 each
1x DMXKing LeDMX4 PRO @$129.00
1x ethernet cable @$8.59
10x 2m LED Channel $70.06 total
wago 221 lever nut - 2 way & 3 way $23.92 + $18.95
18/3 cable - 200ft $42.27
18/2 cable - 100ft $22.92
1x microcontroller $29.25
2x proximity sensor $3.95 each
1x laptop
total: $560
